Telescopic Aerial Platform
Telescopic aerial platforms with working area from 13 to 22 mt.
15 | 2 | 10 HQ – JIB
- Max Working height 15 m
- Max lateral outreach 10 m with 200 Kg basket capacity
- Basket floor 13 m
- Max. capacity 200 Kg – 2 operators
- Standard aluminum basket 1400x700x1100 mm
- Hydraulic basket rotation 90°+90°
- Stabilisation: n° 4 hydraulic outriggers in A+A
- 360° continuous rotation
- 100% hydraulic controls in low pressure
- Minimum GVW 3.5 ton
DESCRIPTION
- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- The subframe with the aim to couple the platform with truck chassis.
- Hydraulic oil tank in easy to reach position to check and restore the oil level.
- Stability guaranteed by No.4 outriggers in A+A, each pair is made by two hydraulic jacks with double effect valve connected to the main hydraulic circuit.
- Double purpose turret for boom support and rotation. One hydraulic engine coupled with one reducer allows 360° continuous rotation on fifth wheel. One rotating joint, assembled inside the turret, allows movements without hose twisting.
- The telescopic boom is made of 2 elements (1 telescopic extension). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc.
- Articulated terminal boom “JIB” to reach even the most uncomfortable positions over roofs and balconies
- The basket is made to support and protect the operators. The aerial platform can be moved by means of controls positioned on the basket.
- 100% hydraulic controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements. The hydraulic system in low pressure guarantees a long-lasting life to the platform with maintenance costs reduced at minimum.

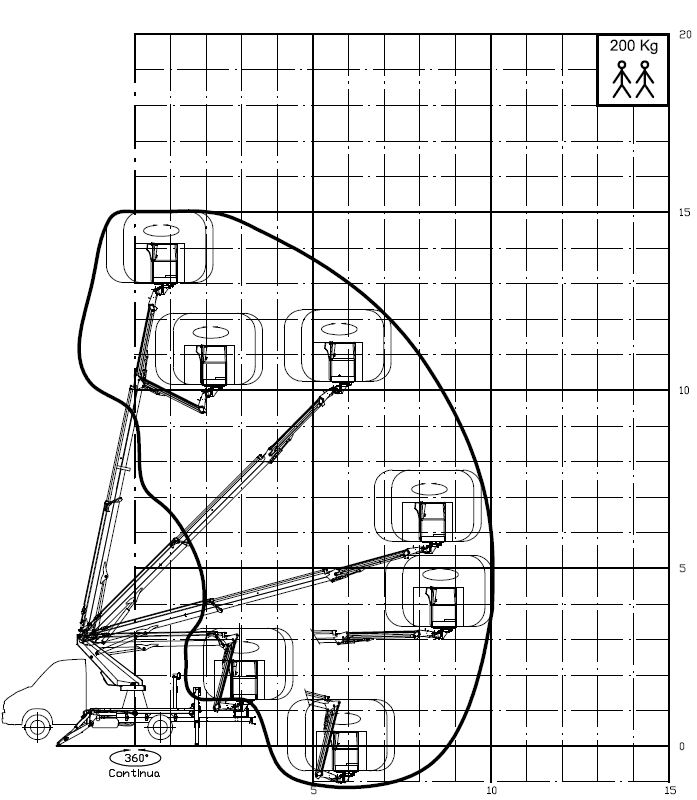

- Lateral outreach up to 10m with 200kg (2 pers.) in the basket
PRODUCT SHEET
click to enlarge
20 | 2 | 9 (11) HQ – JIB
- Max Working height 20 m
- Max lateral outreach 11 m with 120 Kg basket capacity
- Max. lateral outreach 9 m with 230 Kg basket capacity
- Basket floor 18 m
- Max. capacity 230 Kg – 2 operators
- Standard aluminum basket 1400x700x1100 mm
- Hydraulic basket rotation 90°+90°
- Stabilisation: n° 4 hydraulic outriggers in A+A
- 360° continuous rotation
- 100% hydraulic controls in low pressure
- Minimum GVW 3.5 ton
DESCRIPTION
- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- The subframe with the aim to couple the platform with truck chassis.
- Hydraulic oil tank in easy to reach position to check and restore the oil level.
- Stability guaranteed by No.4 outriggers in A+A, each pair is made by two hydraulic jacks with double effect valve connected to the main hydraulic circuit.
- Double purpose turret for boom support and rotation. One hydraulic engine coupled with one reducer allows 360° continuous rotation on fifth wheel. One rotating joint, assembled inside the turret, allows movements without hose twisting.
- The telescopic boom is made of 3 elements (1 fixed + 2 telescopic extensions). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc. The telescopic boom allows vertical and horizontal movements.
- Articulated terminal boom “JIB” to reach even the most uncomfortable positions over roofs and balconies
- The basket is made to support and protect the operators. The aerial platform can be moved by means of controls positioned on the basket.
- 100% hydraulic controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements. The hydraulic system in low pressure guarantees a long-lasting life to the platform with maintenance costs reduced at minimum.
- The steel structure and the booms are made of high strength steel to grant great stability to the whole platform.

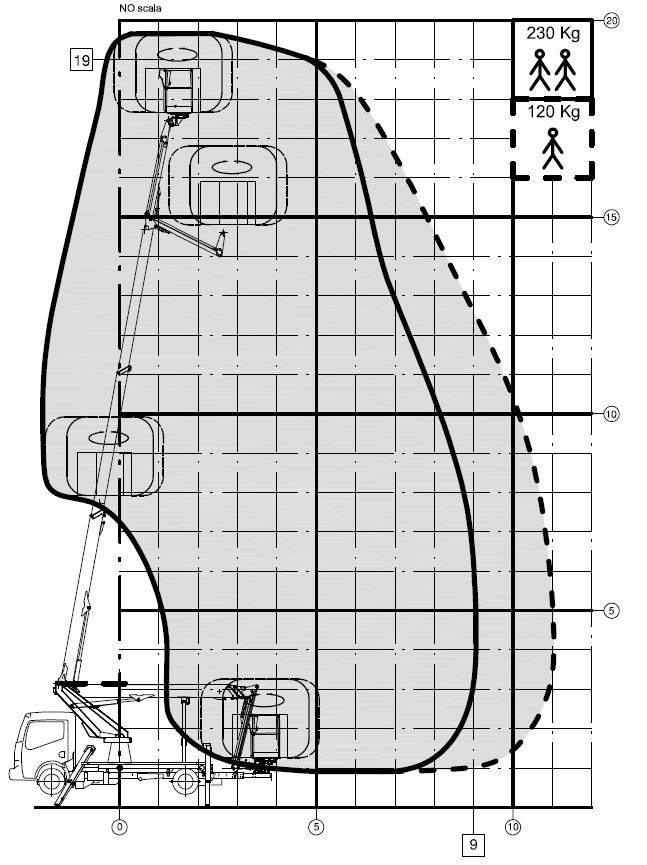

- Lateral outreach up to 9m with 230kg (2 pers.) in the basket and lateral outreach up to 11m with 120kg (1 pers.)
PRODUCT SHEET
click to enlarge
20 | 2 | 9 (11) HQ
- Max Working height 19 m
- Max lateral outreach 11 m with 120 Kg basket capacity
- Max. lateral outreach 9 m with 200 Kg basket capacity
- Basket floor 17 m
- Max. capacity 200 Kg – 2 operators
- Standard aluminum basket 1400x700x1100 mm
- Hydraulic basket rotation 90°+90°
- Stabilisation: n° 4 hydraulic outriggers in A+A
- 360° continuous rotation
- 100% hydraulic controls in low pressure
- Minimum GVW 3.5 ton
DESCRIPTION
- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- The subframe with the aim to couple the platform with truck chassis.
- Hydraulic oil tank in easy to reach position to check and restore the oil level.
- Stability guaranteed by No.4 outriggers in HE+HE, each pair is made by two hydraulic jacks with double effect valve connected to the main hydraulic circuit.
- Double purpose turret for boom support and rotation. One hydraulic engine coupled with one reducer allows 360° continuous rotation on fifth wheel. One rotating joint, assembled inside the turret, allows movements without hose twisting.
- The telescopic boom is made of 3 elements (1 fixed + 2 telescopic extensions). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc. The telescopic boom allows vertical and horizontal movements.
- The basket is made to support and protect the operators. The aerial platform can be moved by means of controls positioned on the basket.
- 100% hydraulic controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements. The hydraulic system in low pressure guarantees a long-lasting life to the platform with maintenance costs reduced at minimum.
- The steel structure and the booms are made of high strength steel to grant great stability to the whole platform.

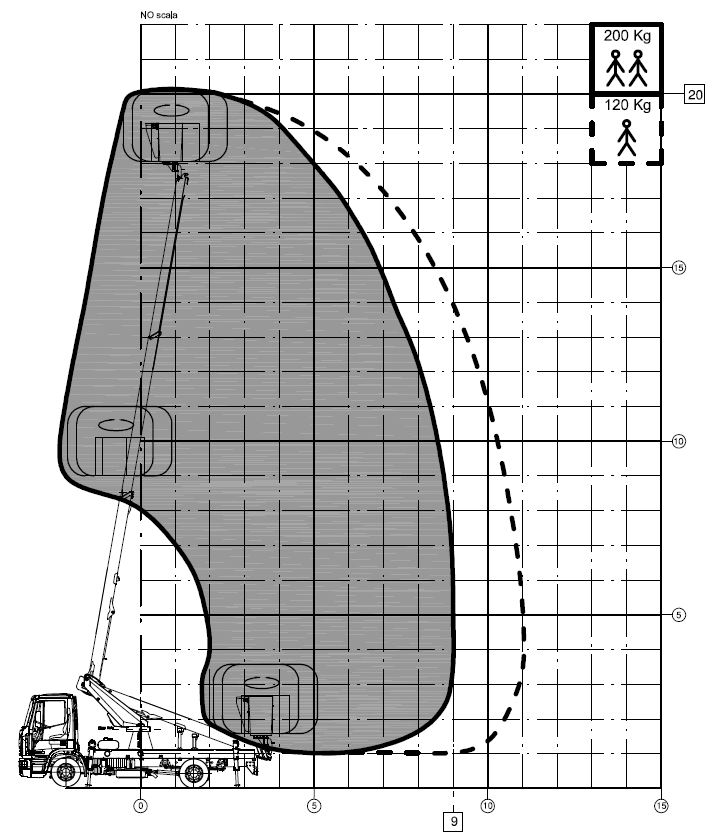

- Lateral outreach up to 9m with 200kg (2 pers.) in the basket and lateral outreach up to 11m with 120kg (1 pers.)
PRODUCT SHEET
click to enlarge
22 | 2 | 12 (14) HQ – JIB
- Max Working height 22 m
- Max lateral outreach 12 m with 280 Kg basket capacity
- Basket floor 20 m
- Max. capacity 280 Kg – 2 operators
- Standard aluminum basket 1400x700x1100 mm
- Hydraulic basket rotation 90°+90°
- Stabilisation: n° 4 hydraulic outriggers in A+A
- 360° continuous rotation
- 100% hydraulic controls in low pressure
- Minimum GVW 6 ton
DESCRIPTION
- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- The subframe with the aim to couple the platform with truck chassis.
- Hydraulic oil tank in easy to reach position to check and restore the oil level.
- Stability guaranteed by No.4 outriggers in A+A, each pair is made by two hydraulic jacks with double effect valve connected to the main hydraulic circuit.
- Double purpose turret for boom support and rotation. One hydraulic engine coupled with one reducer allows 360° continuous rotation on fifth wheel. One rotating joint, assembled inside the turret, allows movements without hose twisting.
- The telescopic boom is made of 3 elements (1 fixed + 2 telescopic extensions). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc. The telescopic boom allows vertical and horizontal movements.
- Articulated terminal boom “JIB” to reach even the most uncomfortable positions over roofs and balconies
- The basket is made to support and protect the operators. The aerial platform can be moved by means of controls positioned on the basket.
- 100% hydraulic controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements. The hydraulic system in low pressure guarantees a long-lasting life to the platform with maintenance costs reduced at minimum.

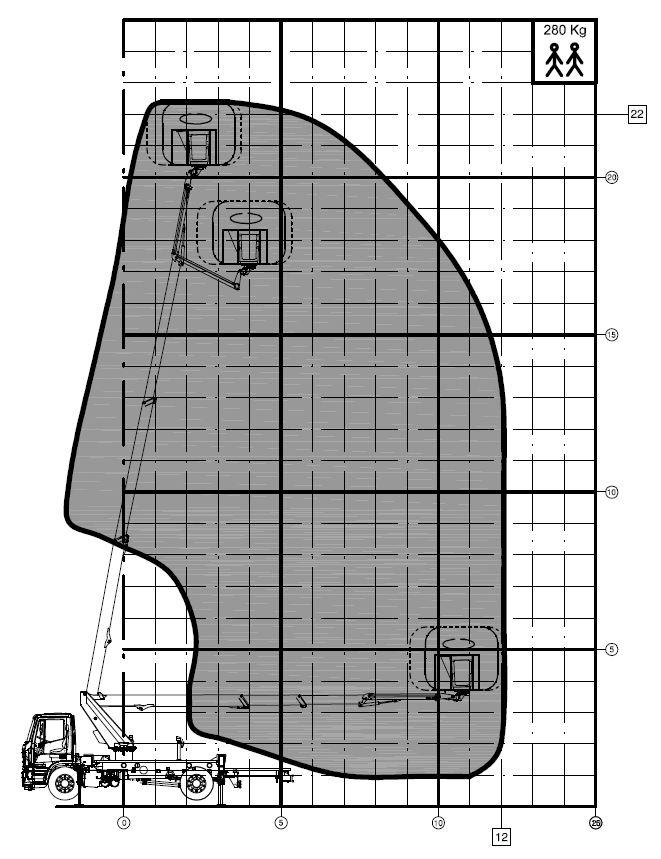

- Lateral outreach up to 12m with 280kg (2 pers.) in the basket
PRODUCT SHEET
click to enlarge
22 | 2 | 12 (14) HQ
- Max Working height 22 m
- Max lateral outreach 14 m with 120 Kg basket capacity
- Max lateral outreach 12 m with 230 Kg basket capacity
- Basket floor 20 m
- Max. capacity 230 Kg – 2 operators
- Standard aluminum basket 1400x700x1100 mm
- Hydraulic basket rotation 90°+90°
- Stabilisation: n° 4 hydraulic outriggers
- 360° continuous rotation
- 100% hydraulic controls in low pressure
- Minimum GVW 6 ton
DESCRIPTION
- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- The subframe with the aim to couple the platform with truck chassis.
- Hydraulic oil tank in easy to reach position to check and restore the oil level.
- Stability guaranteed by No.4 outriggers, each pair is made by two hydraulic jacks with double effect valve connected to the main hydraulic circuit.
- Double purpose turret for boom support and rotation. One hydraulic engine coupled with one reducer allows 360° continuous rotation on fifth wheel. One rotating joint, assembled inside the turret, allows movements without hose twisting.
- The telescopic boom is made of 3 elements (1 fixed + 2 telescopic extensions). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc. The telescopic boom allows vertical and horizontal movements.
- The basket is made to support and protect the operators. The aerial platform can be moved by means of controls positioned on the basket.
- 100% hydraulic controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements. The hydraulic system in low pressure guarantees a long-lasting life to the platform with maintenance costs reduced at minimum.
- The steel structure and the booms are made of high strength steel to grant great stability to the whole platform.

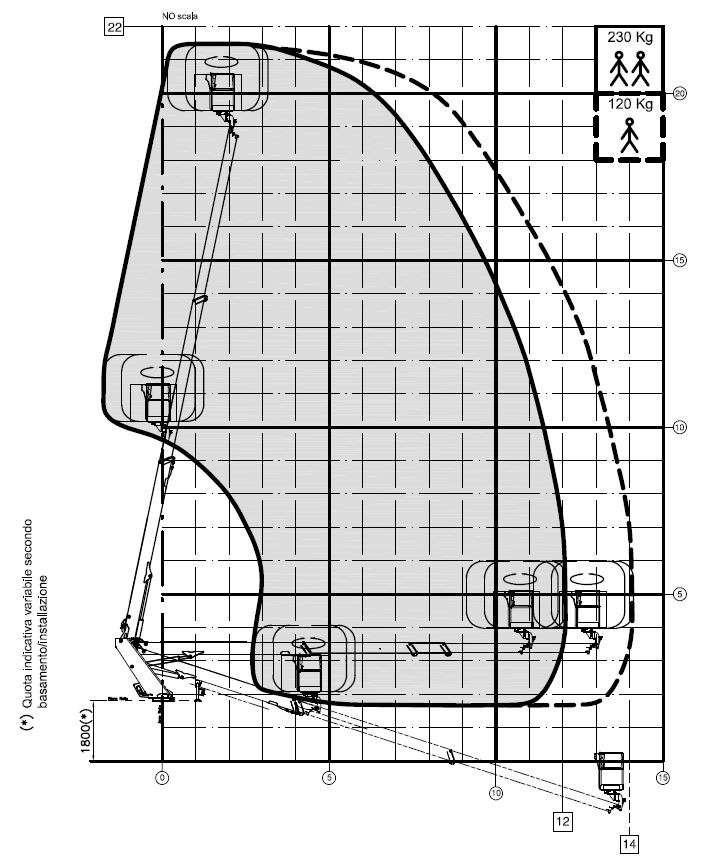

- Lateral outreach up to 12m with 230kg (2 pers.) in the basket and lateral outreach up to 14m with 120kg (1 pers.)
PRODUCT SHEET
click to enlarge
24 | 2 | 12 (14) HQ JIB
- Max Working height 24 m
- Max lateral outreach 14 m with 120 Kg basket capacity
- Max. lateral outreach 12 m with 250 Kg basket capacity
- Basket floor 22 m
- Capacity 250 Kg – 2 operators
- Standard aluminum basket 1400x700x1100 mm
- Hydraulic basket rotation 90°+90°
- Stabilisation: n° 4 hydraulic outriggers
- Rotation: 360° continuous
- Controls: 100% hydraulic in low pressure
- Minimum GVW 6 ton
- Working area depending on truck GVW
DESCRIPTION
- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- The telescopic boom is made of 3 elements (2 telescopic extensions). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc.
- 100% hydraulic controls
- Controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements, and long-lasting life to the platform with maintenance costs reduced at minimum.
- Constant and gradual automatic leveling of the basket with independent hydraulic circuit
- Electric power tap 230 V in basket
- Engine start & stop from the basket
- Closed outriggers warning light for driving safely
- Hour-counter in the cabin
- Aluminum basket. Also available the fiberglass basket insulated against accidental contacts with electrical power lines
- Lateral outreach up to 12m with 250kg (2 pers.) in the basket and lateral outreach up to 14m with 120kg (1 pers.)
