Aerial Platforms on Mini Trucks
Aerial Platform range Telescopic and Articulated mounted on Mini Trucks.

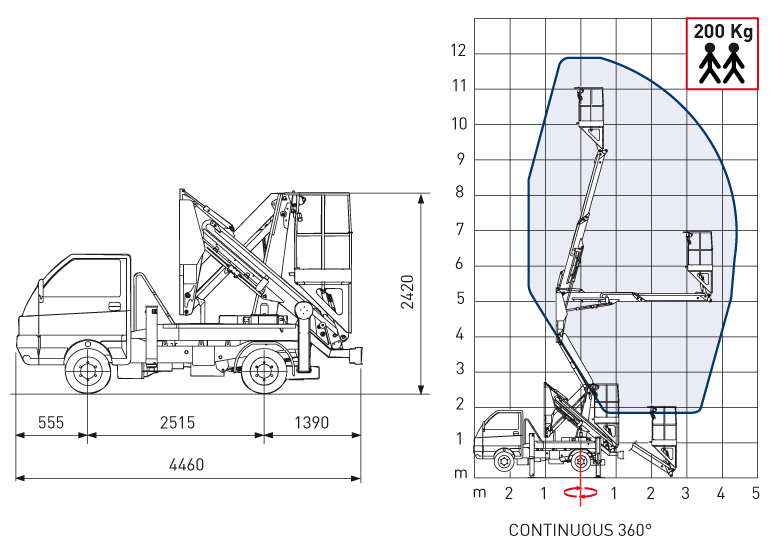

X MINI 12 | 2 | 4.5 HQ
- Max Working height 12 m
- Max Lateral outreach 4.5 m
- Basket floor 10 m
- Capacity 200 Kg – 2 operators
- Standard aluminum basket 1000x700x1100 mm
- Stabilisation: n° 4 hydraulic in shape outriggers
- Rotation 360°
- 100% hydraulic controls
- Minimum GVW 2.2 ton
DESCRIPTION
- Telescopic boom
- Pantograph to obtain an override heght of 5 m
- 100% hydraulic controls
- Electric power tap 230 V in basket
- Engine start & stop from basket
- Optional auxiliary engine to operate the platform without using truck engine
- Stop safety valves directly mounted on each hydraulic cylinder
- Hour-counter in the cabin
- Closed outriggers warning light for driving safely
PRODUCT SHEET
click to enlarge

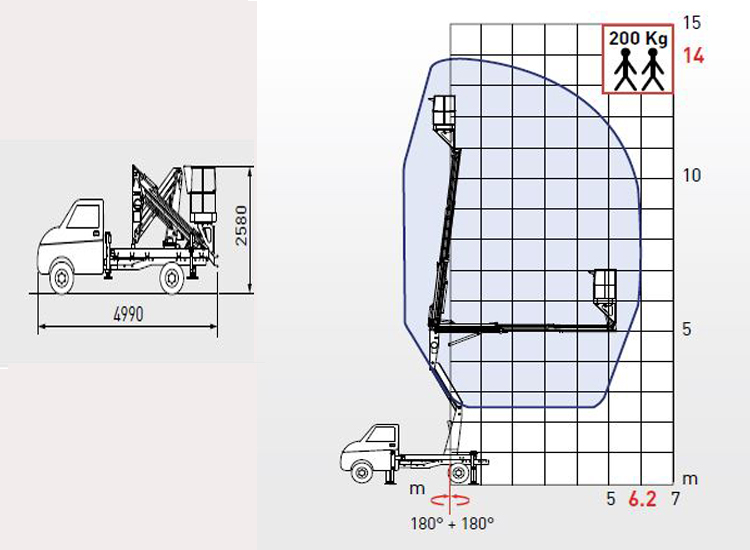

X MINI 14 | 2 | 6.2 | HQ
- Max Working height 14 m
- Max Lateral outreach 6.2 m
- Basket floor 10 m
- Capacity 200 Kg – 2 operators
- Standard aluminum basket 1000x700x1100 mm
- Stabilisation: n° 4 hydraulic in shape outriggers
- Rotation 360°
- 100% hydraulic controls
- Minimum GVW 2.2 ton
DESCRIPTION
- Telescopic boom
- Pantograph to obtain an override heght of 5 m
- 100% hydraulic controls
- Electric power tap 230 V in basket
- Engine start & stop from basket
- Optional auxiliary engine to operate the platform without using truck engine
- Stop safety valves directly mounted on each hydraulic cylinder
- Hour-counter in the cabin
- Closed outriggers warning light for driving safely
PRODUCT SHEET
click to enlarge

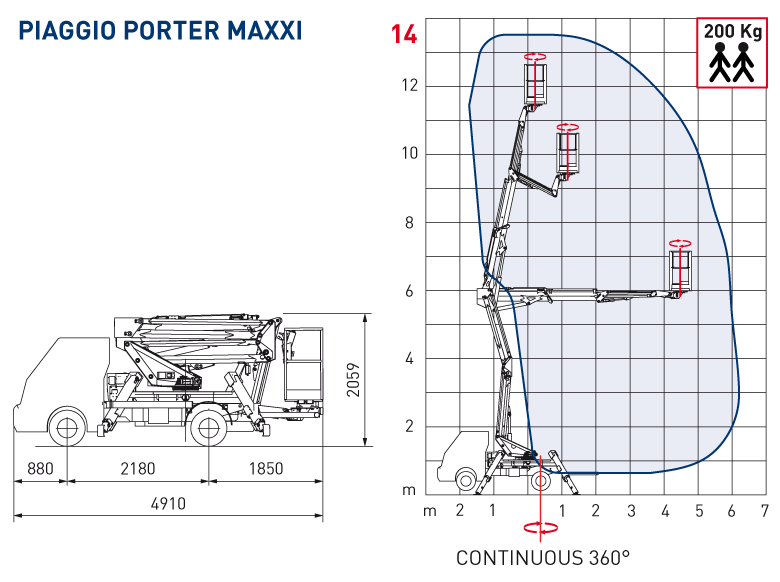

14 | 2 | 6 HQ JIB
- Max Working height 13.5 m
- Max Lateral outreach 6 m
- Basket floor 11.5 m
- Capacity 200 Kg – 2 operators
- Standard aluminum basket 1400x600x1100 mm
- Hydraulic basket rotation 90°+90°
- Stabilisation: n° 4 hydraulic outriggers
- 360° continuous rotation
- 100% hydraulic controls in low pressure
- Minimum GVW 2.2 ton
DESCRIPTION
- There is no need of any limiting device for lateral outreach
- Double pantograph to obtain an override height of 6 m
- Telescopic boom
- Articulated terminal boom “JIB” to reach even the most uncomfortable positions over roofs and balconies
- 360° continuous rotation of turret without any limit on the whole working area
- 100% hydraulic controls with proportional system in low pressure to allow gradual and accurate movements, and long-lasting life to the platform with maintenance costs reduced at minimum
- Rotating basket to be able to work in every position
- Electric power tap 230 V in basket
- Engine start & stop from basket
- Optional auxiliary engine to operate the platform without using truck engine
- Stop safety valves directly mounted on each hydraulic cylinder
- Hour-counter in the cabin
- Closed outriggers warning light for driving safely
PRODUCT SHEET
click to enlarge

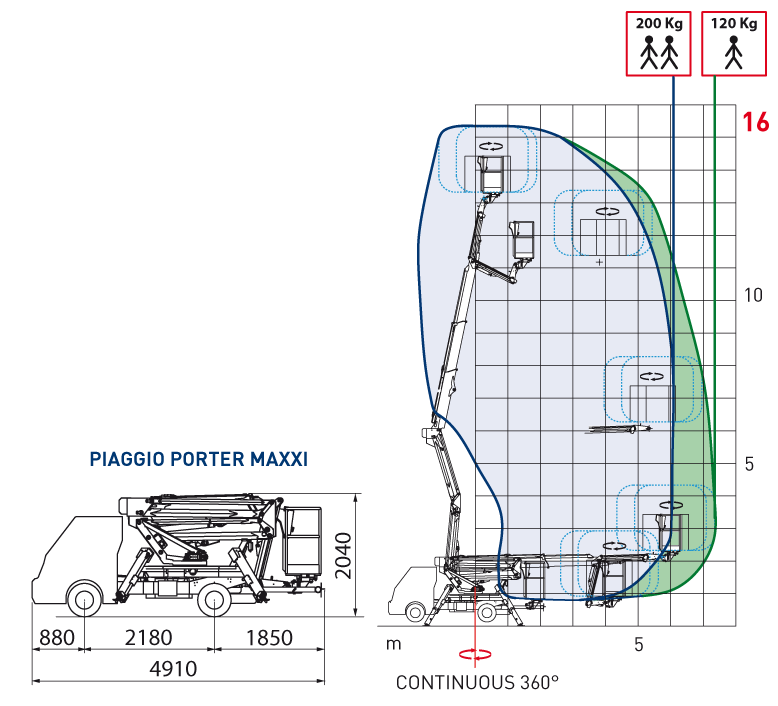

16 | 2 | 6 (7.5) HQ JIB
- Max Working height 16 m
- Max lateral outreach 7.5 m with 120 Kg basket capacity
- Max. lateral outreach 6 m with 200 Kg basket capacity
- Basket floor 14 m
- Max. capacity 200 Kg – 2 operators
- Standard aluminum basket 1400x600x1100 mm
- Hydraulic basket rotation 90°+90°
- Stabilisation: n° 4 hydraulic outriggers
- 360° continuous rotation
- 100% hydraulic controls in low pressure
- Minimum GVW 2.2 ton
DESCRIPTION
- There is no need of any limiting device for lateral outreach
- Double pantograph to obtain an override height of 6 m
- Telescopic boom
- Articulated terminal boom “JIB” to reach even the most uncomfortable positions over roofs and balconies
- 360° continuous rotation of turret without any limit on the whole working area
- 100% hydraulic controls with proportional system in low pressure to allow gradual and accurate movements, and long-lasting life to the platform with maintenance costs reduced at minimum
- Rotating basket to be able to work in every position
- Electric power tap 230 V in basket
- Engine start & stop from basket
- Optional auxiliary engine to operate the platform without using truck engine
- Stop safety valves directly mounted on each hydraulic cylinder
- Hour-counter in the cabin
- Closed outriggers warning light for driving safely
PRODUCT SHEET
click to enlarge
