Aerial Platforms on Pick Up
Working height up to 16m on vehicles with B driving license.

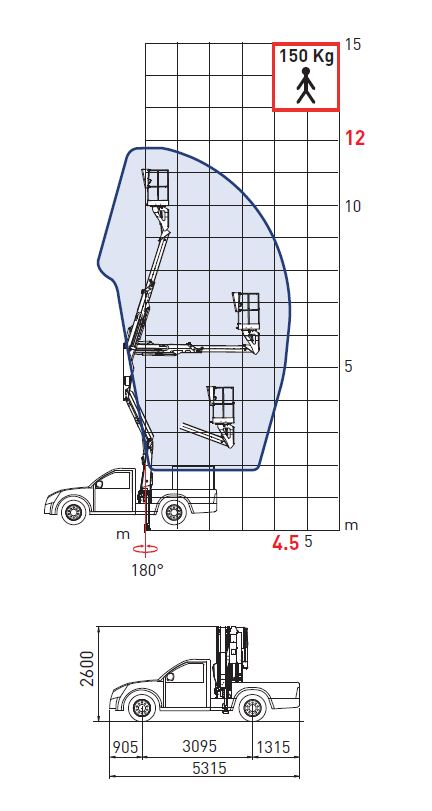

PICK-UP X4 – 12
- Max Working height 12 m
- Max Lateral outreach 4.5 m
- Basket floor 10 m
- Capacity 150 Kg – 1 operator
- Standard aluminium basket 800x700x1100 mm
- Stabilisation: n° 2 hydraulic outriggers
- Rotation 180°
- 100% hydraulic controls
- Minimum GVW 2.8 ton
DESCRIPTION
-
FREE SPACE IN THE REAR BODY TO TRANSPORT MATERIALS
-
SINGLE CAB VEHICLE
-
FROM 2.8 TON
PRODUCT SHEET
click to enlarge

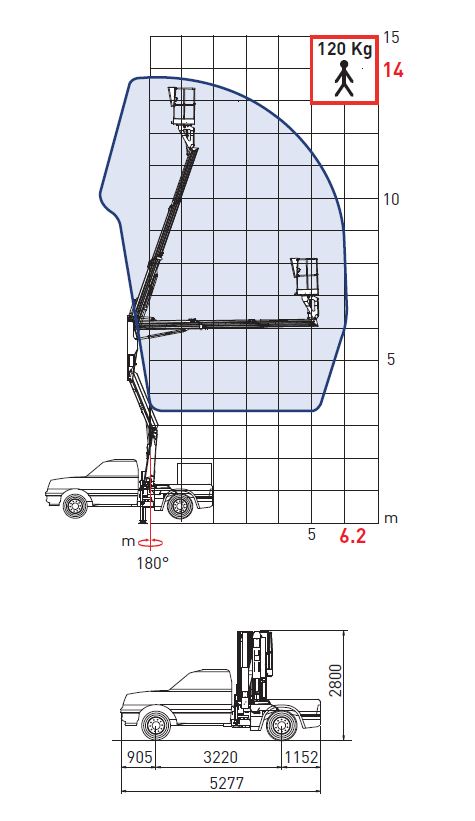

PICK-UP X4 – 12
- Max Working height 14 m
- Max Lateral outreach 6.2 m
- Basket floor 12 m
- Capacity 120 Kg – 1 operator
- Standard aluminium basket 800x700x1100 mm
- Stabilisation: n° 2 hydraulic outriggers
- Rotation 180°
- 100% hydraulic controls
- Minimum GVW 2.8 ton
DESCRIPTION
-
FREE SPACE IN THE REAR BODY TO TRANSPORT MATERIALS
-
SINGLE CAB VEHICLE
-
FROM 2.8 TON
PRODUCT SHEET
click to enlarge

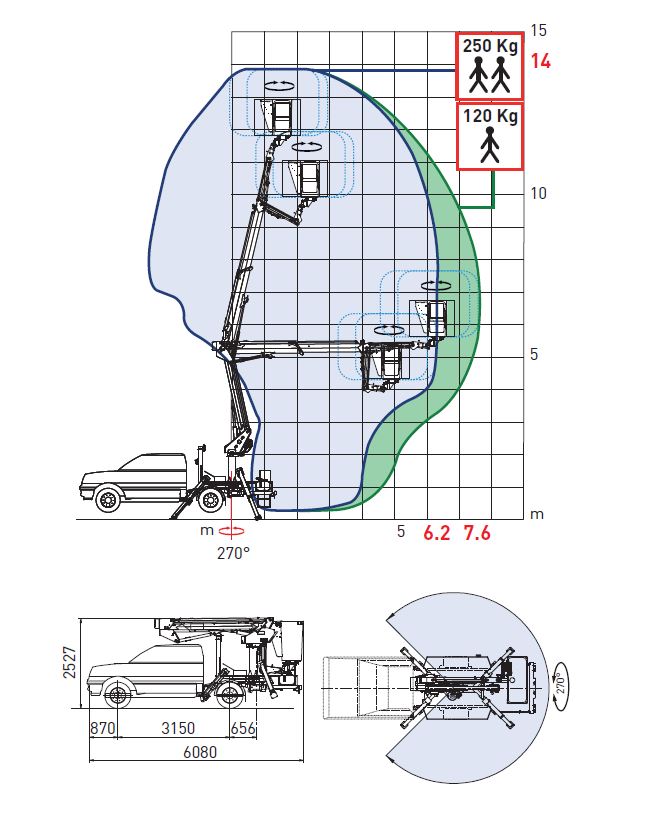

NEW EUROSKY 14 | 2 | 6.2 (7.6) | JIB
- Max Working height 14 m
- Max Lateral outreach 7.6 m
- Basket floor 12 m
- Max Basket Pay Load: 250 Kg – 2 persons (up to 6.2m), 120 Kg – 1 person (up to 7.6m)
- Standard aluminium basket 800x700x1100 mm
- Stabilisation: n° 4 hydraulic outriggers in A+A
- Rotation of turret 270°
- Rotation of basket 90°+90°
- 100% hydraulic controls
- Minimum GVW 3.2 ton
DESCRIPTION
-
KING CAB & DOUBLE CAB VEHICLE
-
ARTICULATED TERMINAL FLY BOOM – JIB
-
FROM 3.2 TON
PRODUCT SHEET
click to enlarge

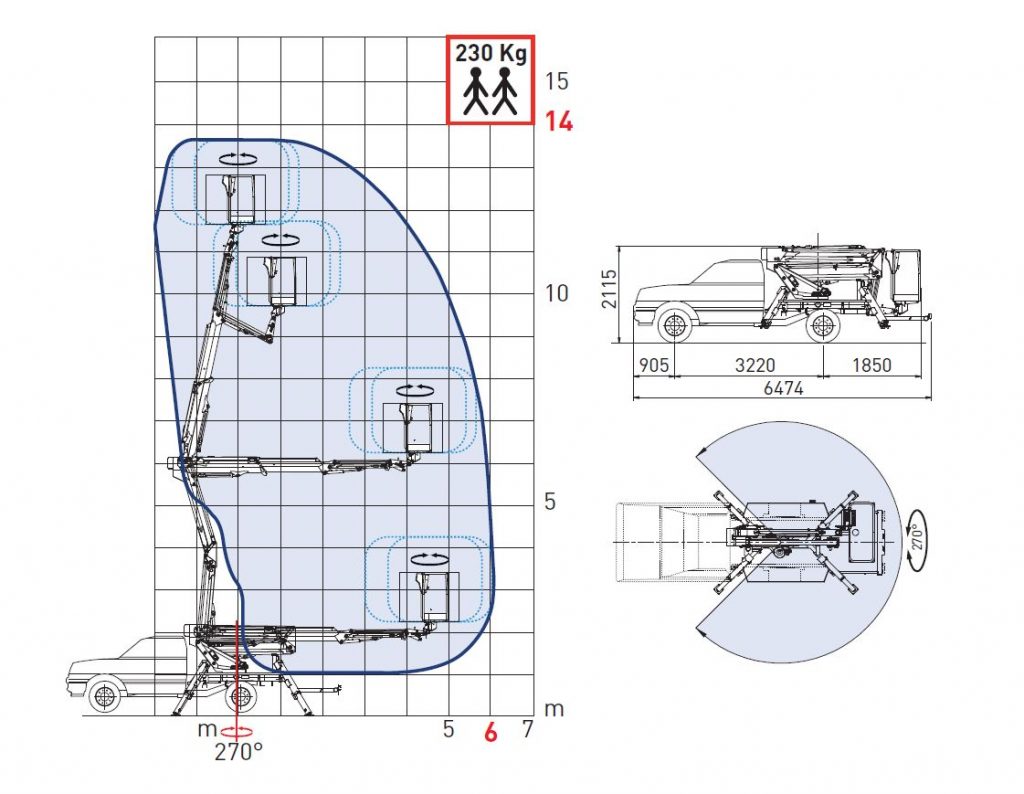

NEW EUROSKY 14 | 2 | 6 | JIB
- Max Working height 14 m
- Max Lateral outreach 6 m
- Basket floor 12 m
- Max Basket Pay Load: 230 Kg
- Standard aluminium basket 800x700x1100 mm
- Stabilisation: n° 4 hydraulic outriggers in A+A
- Rotation of turret 270°
- Rotation of basket 90°+90°
- 100% hydraulic controls
- Minimum GVW 3.2 ton
DESCRIPTION
-
SINGLE CAB VEHICLE
- DOUBLE PANTOGRAPH
-
ARTICULATED TERMINAL FLY BOOM – JIB
-
FROM 3.2 TON
PRODUCT SHEET

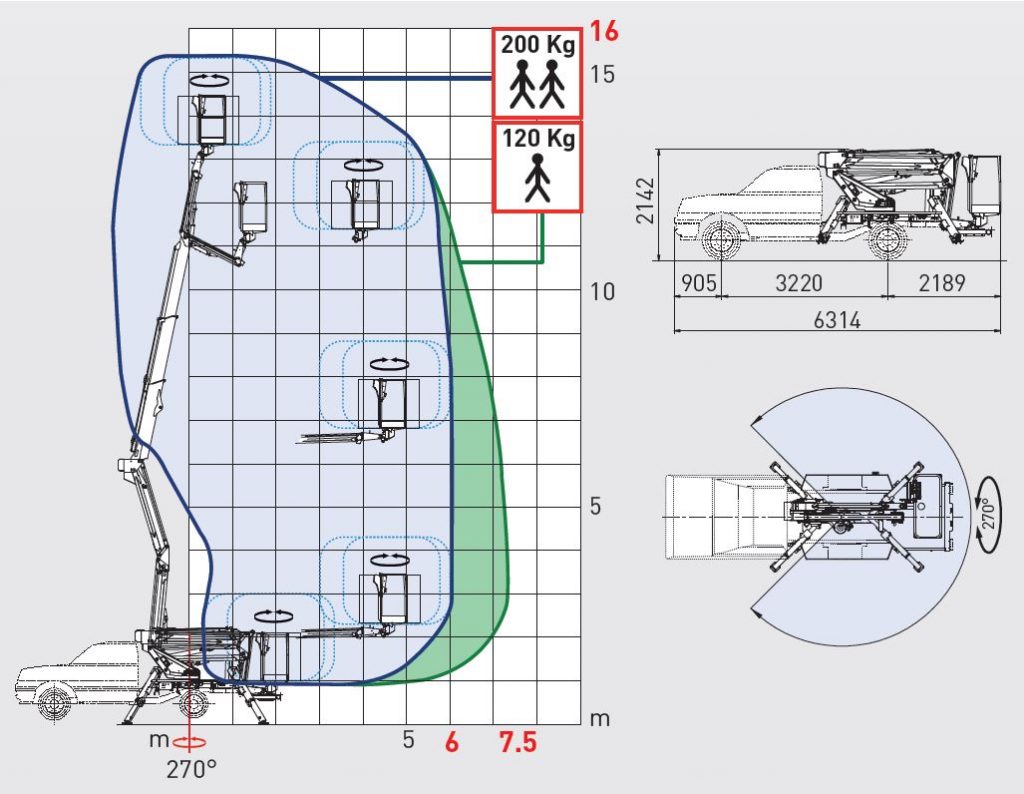

NEW EUROSKY 16 | 2 | 6 (7.5) | JIB
- Max Working height 16 m
- Max Lateral outreach 7.5 m
- Basket floor 14 m
- Max Basket Pay Load: 200 Kg – 2 persons (up to 6m), 120 Kg – 1 person (up to 7.5m)
- Standard aluminium basket 800x700x1100 mm
- Stabilisation: n° 4 hydraulic outriggers in A+A
- Rotation of turret 270°
- Rotation of basket 90°+90°
- 100% hydraulic controls
- Minimum GVW 3.2 ton
DESCRIPTION
-
SINGLE CAB VEHICLE
- DOUBLE PANTOGRAPH
-
ARTICULATED TERMINAL FLY BOOM – JIB
-
FROM 3.2 TON
