Aerial Platforms with Basket capacity 400 kg
Aerial platform with the major basket capacity -up to 400kg constant basket pay load also without stabilizers, and a self-levelling system to maintain the basket always parallel to the ground in each position. Ideal for special works.
Solar 11

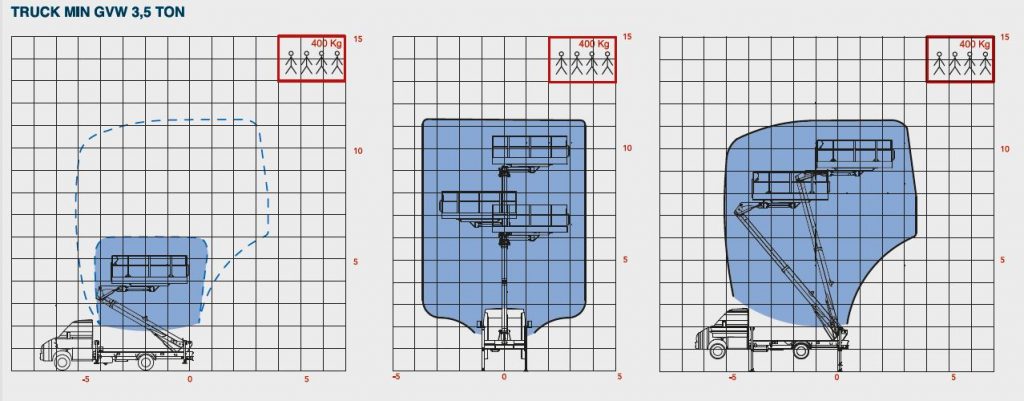

- Max Working height 11 m
- Max Lateral outreach 3.5 m
- Max Rear outreach 4 m
- Basket floor 9 m
- Capacity 400 Kg – 4 operators
- Aluminum basket 3500x2000x1100 mm
- Stabilisation n° 4 hydraulic in shape outriggers
- Basket roto-translation ±90° ±1 m
- Minimum GVW 3.5 ton
DESCRIPTION
- Telescopic boom made of 2 elements, 1 fixed and 1 telescopic extension
- Proportional electro-hydraulic controls for more simultaneous movements
- Possibility to work at 10° slope
- Automatic levelling of the basket respect to the ground to remain perfectly allined to the soil in every working position
- Constant linear outreach of 4m/11m working height
- Double movement of the basket: lateral translation and 90°+90° rotation
- 400 kg constant basket pay load without limitation, even without stabilizers
- 4 in-shape outriggers with individual controls
- Electric power tap 230V in basket
- Engine start & stop from the basket
- Stop valves directly mounted on each hydraulic cylinder
- Warning lights indicating the outriggers position: open / closed
- Hour counter in the cab to check the working hours and the frequency of the scheduled tests
