New Range
Our current new stock list available (updated 15/5/25)

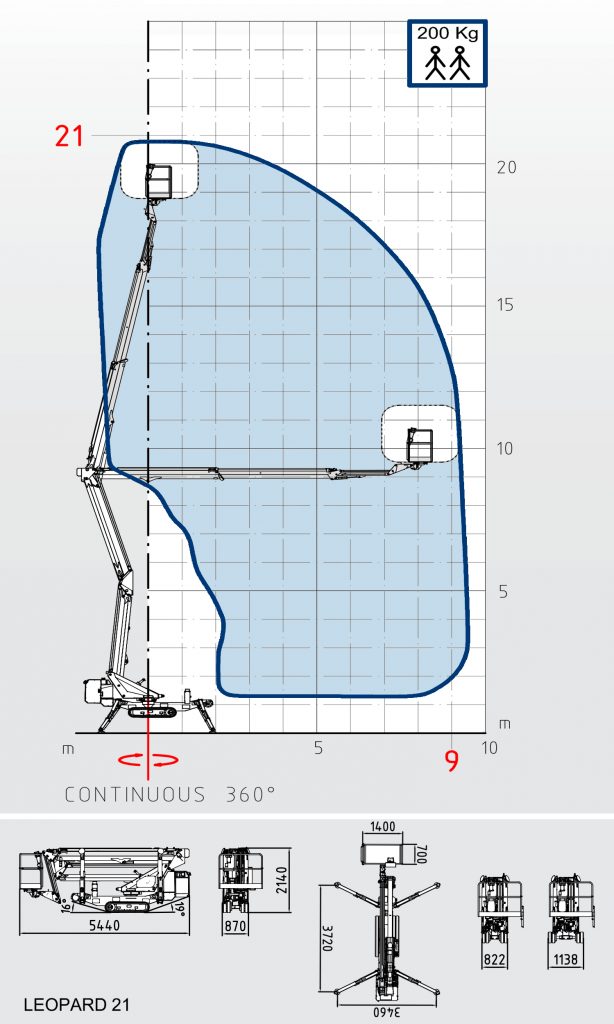

Leopard 21
Call for £ Price
-
-
- Working height: 21 m
- Max. lateral outreach: 9 m
- Basket floor: 20 m
- Max. basket capacity: 200 Kg
- Hydraulic outriggers: n.4
- Rotation: 360°
- Controls: 100% electro-hydraulic
-
DESCRIPTION
- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- Hydraulic oil tank (56 lt capacity) integrated in the subframe and easy to access.
- Stability is given by no. 4 outriggers; each pair is made of two hydraulic jacks with double effect valve connected to the main hydraulic circuit.
- Double purpose turret for boom support and rotation. One hydraulic engine coupled with one reducer allows turret 360° continuous.
- Double pantograph to reach a bridging height of 9.2 m.
- The telescopic boom is made of 2 elements (1 fixed + 1 telescopic extension). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc. The telescopic boom allows vertical and horizontal movements.
- Basket with the aim to protect and support the operators working at a height, in the basket there is a controls panel to move the platform.
- Electro-hydraulic controls with proportional system to allow gradual and accurate movements.
- The steel structure and the booms are made of high strength steel to grant great stability to the whole platform.
- Support for boom in rest position
- Maximum inclination tolerance: 30%
- 2 speeds: 0.8 km/h – 1.3 km/h
- Petrol engine (Kohler HP 14)
- Total dimensions: L4980xW780xH1995 mm
- Total weight: 2000 Kg
PRODUCT SHEET
click to enlarge
Xiraffe Aerial Platform
Call for £ Price (Ex-demo unit)
- 4 independently controlled spider type stabilising legs ensure unit is correctly and safely positioned prior to releasing the safety control locking devices to enable the platform to be raised.
- Maximum height: 12 metres
- Maximum horizontal extension: 3 metres
DESCRIPTION
- Working height: 12 m
- Platform length: 1 m
- Platform width: 0.7 m
- Max. reach horizontal: 4.5 m
- Persons: 2
- Net load: 200 kg
PRODUCT SHEET
click to download pdf
Stock Coming Soon
New stock due 3/4 of 2025.
NEW EUROSFILO
19 | 2 | 7 (8,5) HQ
The New Eurosfilo 19|2|7 (8.5) HQ aerial platform is the ideal solution for working safely at a height of up to 14 meters with a horizontal reach of 9 metres.
DESCRIPTION
-
- WORKING HEIGHT 19 m
- MAX. LATERAL OUTREACH 7 – 8,5 m
- BASKET FLOOR 17 m
- MAX. BASKET CAPACITY 200 Kg – 2 persone
- HYDRAULIC OUTRIGGERS n.4 in sagoma
- ROTATION 360° continua
- CONTROLS 100% idraulici in bassa pressione
- MINIMUM GVW PTT 3.5 ton
PRODUCT SHEET
click to enlarge
NEW EUROSKY 21|2|7(9) HQ AERIAL PLATFORM
The New Eurosfilo 21|2|7 (9) HQ aerial platform is the ideal solution for working safely at a height of up to 21 meters with an outreach of 7 or 9 meters horizontally.
DESCRIPTION
-
- WORKING HEIGHT 21 m
- MAX. LATERAL OUTREACH 7 – 9 m
- BASKET FLOOR 19 m
- BRIDGING HEIGTH 9,5 m
- MAX. BASKET CAPACITY 260 Kg – 2 persone
- HYDRAULIC OUTRIGGERS n.4 in shape
- ROTATION 360° continuous
- CONTROLS 100% HYDRAULIC LOW PRESSURE
- MINIMUM GVW PTT 3.5 ton
- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- The subframe with the aim to couple the platform with truck chassis.
- Hydraulic oil tank integrated in the subframe and easy to access.
- Stability guaranteed by No.IN-SHAPE 4 outriggers, each pair is made by two hydraulic jacks with double effect valve connected to the main hydraulic circuit.
- Double purpose turret for boom support and rotation. One hydraulic engine coupled with a VSF reducer allows 360° continuous rotation on fifth wheel. One rotating joint, assembled inside the turret, allows movements without hose twisting.
- Double pantograph to lift the platform without modifying the basket position in respect to the fifth wheel coupling center. The maximum height of the pantograph coincides with the maximum bridging height. The pantograph is made of 2 booms connected through a head with simultaneous movements.
- The telescopic boom is made of 2 elements (1 fixed + 1 telescopic extension). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc. The telescopic boom allows vertical and horizontal movements.
- The basket is made to support and protect the operators. The aerial platform can be moved by means of controls positioned on the basket.
- 100% hydraulic controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements. The hydraulic system in low pressure guarantees a long-lasting life to the platform with maintenance costs reduced at minimum.
- The steel structure and the booms are made of high strength steel to grant great stability to the whole platform.
- Moment limiting device: Lateral outreach up to 7m with 260kg (2 pers.) in the basket and lateral outreach up to 9m with 120kg (1 pers.)
PRODUCT SHEET
click to enlarge
NEW EUROSKY 22|2|10 HQ JIB
The New Eurosfilo 22|2|10 HQ JIB aerial platform is the ideal solution for working safely at a height of up to 22 meters with a horizontal reach of 10 metres.
DESCRIPTION
-
- WORKING HEIGHT 21 m
- MAX. LATERAL OUTREACH 7 – 9 m
- BASKET FLOOR 19 m
- BRIDGING HEIGTH 9,5 m
- MAX. BASKET CAPACITY 260 Kg – 2 persone
- HYDRAULIC OUTRIGGERS n.4 in shape
- ROTATION 360° continuous
- CONTROLS 100% HYDRAULIC LOW PRESSURE
- MINIMUM GVW PTT 3.5 ton
- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- The subframe with the aim to couple the platform with truck chassis.
- Hydraulic oil tank integrated in the subframe and easy to access.
- Stability guaranteed by No.IN-SHAPE 4 outriggers, each pair is made by two hydraulic jacks with double effect valve connected to the main hydraulic circuit.
- Double purpose turret for boom support and rotation. One hydraulic engine coupled with a VSF reducer allows 360° continuous rotation on fifth wheel. One rotating joint, assembled inside the turret, allows movements without hose twisting.
- Double pantograph to lift the platform without modifying the basket position in respect to the fifth wheel coupling center. The maximum height of the pantograph coincides with the maximum bridging height. The pantograph is made of 2 booms connected through a head with simultaneous movements.
- The telescopic boom is made of 2 elements (1 fixed + 1 telescopic extension). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc. The telescopic boom allows vertical and horizontal movements.
- The basket is made to support and protect the operators. The aerial platform can be moved by means of controls positioned on the basket.
- 100% hydraulic controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements. The hydraulic system in low pressure guarantees a long-lasting life to the platform with maintenance costs reduced at minimum.
- The steel structure and the booms are made of high strength steel to grant great stability to the whole platform.
- Moment limiting device: Lateral outreach up to 7m with 260kg (2 pers.) in the basket and lateral outreach up to 9m with 120kg (1 pers.)
PRODUCT SHEET
click to enlarge
NEW EUROSKY 20|2|10 HQ JIB
The New Eurosfilo 20|2|10 HQ JIB aerial platform is the ideal solution for working safely at a height of up to 20 meters with a horizontal reach of 10 metres.
DESCRIPTION
-
- WORKING HEIGHT 20 m
- MAX. LATERAL OUTREACH 10m
- ROTATION 360° continuous
- CONTROLS 100% HYDRAULIC LOW PRESSURE
